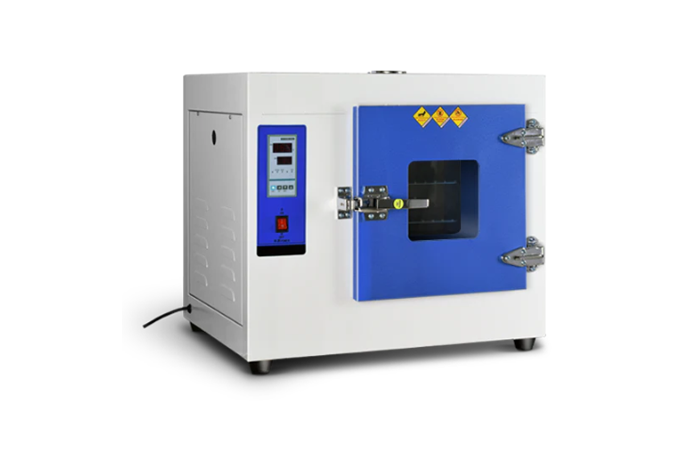

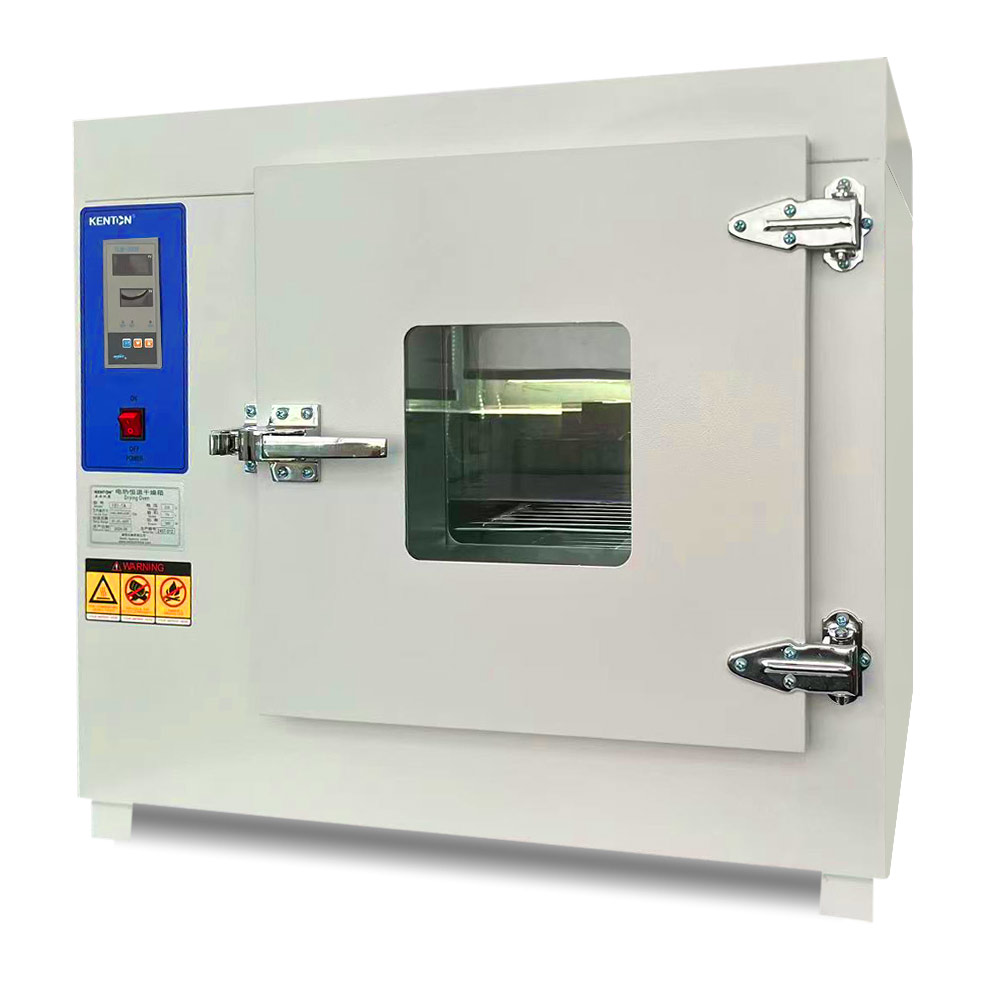

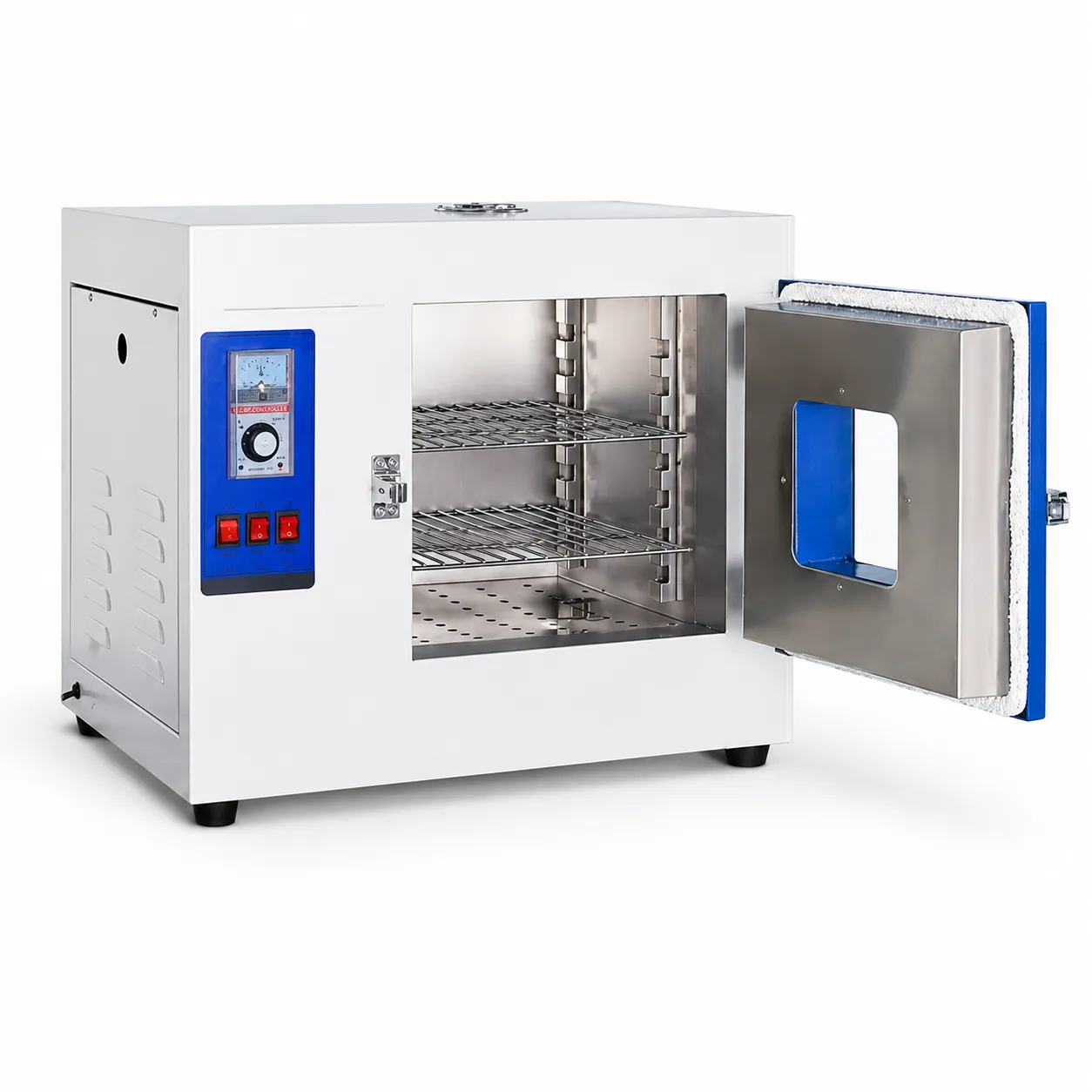

101 Electric Heating Drying Oven
101 Electric Heating Drying Oven
The heating oven is suitable for industrial factories, labs, research, and other departments for drying, baking, and heat treatments.
Suitable for basic labs and workshops testing, mining and industrial companies, but prolonged continuous use is not advised. It is not advised to seek greater temperature uniformity and a high sample water content.
Technical Parameter:
Model |
Voltage (V) |
Temp
range (℃)
|
Accuracy (℃) |
Fluctuation (%) | Power (KW) |
Overall dimension (mm) (H*W*D) |
Packing size
(mm)
(H*W*D) |
Net weight
(KG)
|
Shipping weight (KG) |
101-0(AS) | 220 |
RT+5 ~300
|
±1 | ±1 | 0.8~1.6 | 590*660*520 |
710*740*600
|
34.8
|
37.2 |
101-1(AS) | 220 |
RT+5 ~300
|
±1 | ±1 | 0.8~1.6 | 690*760*520 |
810*840*600
|
41.5
|
45 |
101-2(AS) | 220 |
RT+5 ~300
|
±1 | ±1 | 1.6~2.4 | 790*870*64 |
910*950*720
|
60
|
64.5 |
101-3(AS) | 220 |
RT+5 ~300
|
±1 | ±1 | 2~3 | 1050*980*700 |
1270*1060*780
|
80
|
84.5 |
101-4(AS) | 220 |
RT+5 ~300
|
±1 | ±1 | 3~4.8 | 1300*1210*1000 |
1420*1290*1080
|
162
|
168 |
101-5(AS) | 220 |
RT+5 ~300
|
±1 | ±1 | 4~6 | 1300*1420*1200 |
1420*1500*1280
|
189
|
197 |
The modes with “S” is stainless steel inner chamber.
More
More
Product introduction:
● Heating drying oven is designed for the use of sterilizers, melting pots, drying ovens, and laboratories in industrial factories and other departments.
Feature:

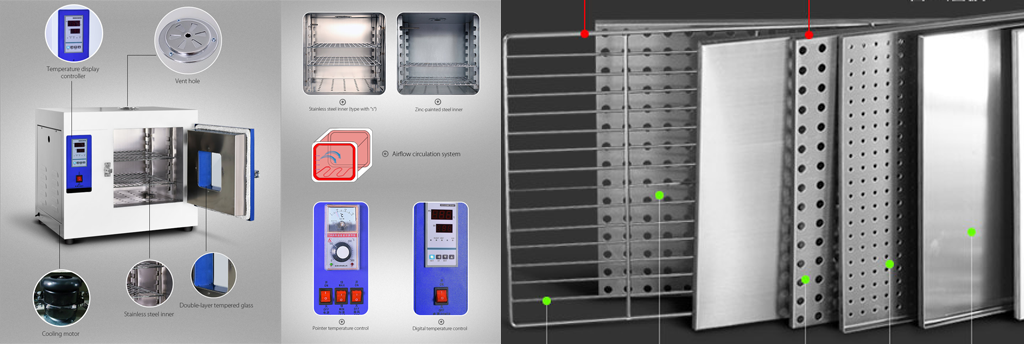

● There are three sorts of controllers. Microcomputer intelligent type, LED microcomputer controller, and pointer controller.
● The outside is composed of premium cold-rolled steel, coated with a metallic coating. Excellent color scheme that works well for both workshop production and research labs.

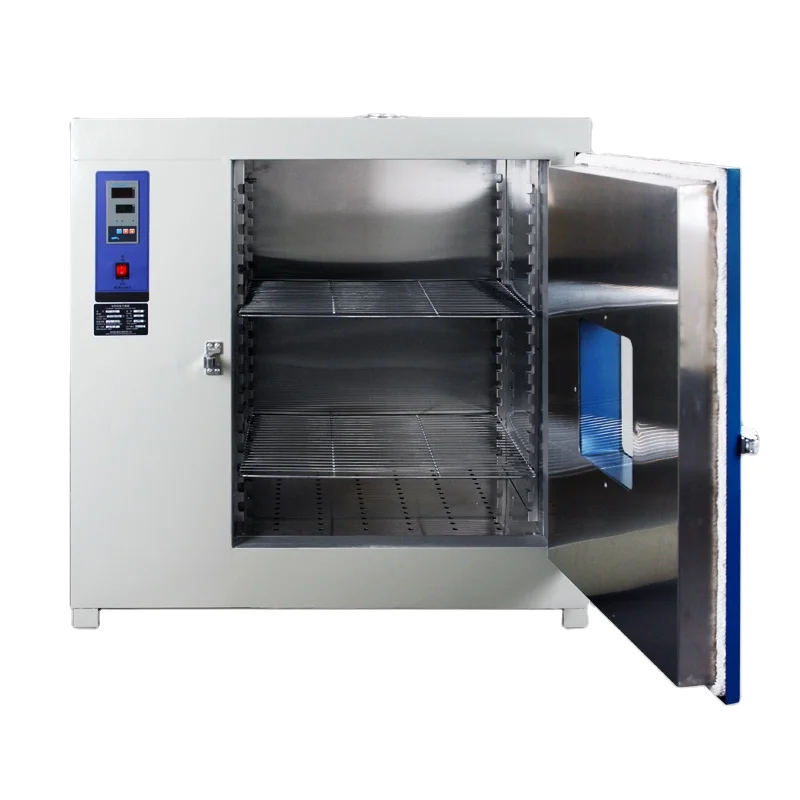

● Two types of inner chamber materials—mirror stainless steel and regular cold-rolled stainless steel—allow for easy viewing of the materials within.
● An air circulation system with low-noise fans and an air cycle duct helps to maintain a more consistent temperature. A rapid warm-up time and a consistent temperature inside the inner chamber are guaranteed by the appropriate air circulation.
● High-temperature heat pipes for the heating element to ensure safety and longer life; high-temperature silicone for sealing the door;
● Fan driven convection for 101series oven air circulation.
